For pumping any media applied in refrigeration industry:  ammonia,freon,silicone oil etc.

Product Description

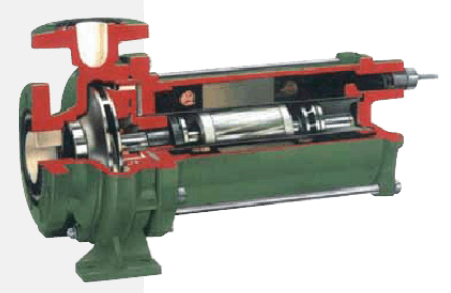

Hermetic refrigeration pump is a combination unit of centrifugal pump and 3-phase AC motor, with the hydraulic section connecting directly with the motor drive shafto constitute the rotor component jointly. The stator can is embedded on the inner side of the stator to isolate both the rotor chamber and stator chamber, that makes Hermetic pumps sealless completely. When the pump is operating, the axial force is balanced automatically and hydraulically.

The stator can is imported from Germany, that is formed by rolling in a special process to have a high precision, a good quality free from welding defects, that ensures sfitiently the canned motor pump to operate reliably and stably.

The slide bearing is in FH82A to have such advantages as high strength, good wear resistance, etc, and a service life 10 times more than resin impregnated graphite bearing.

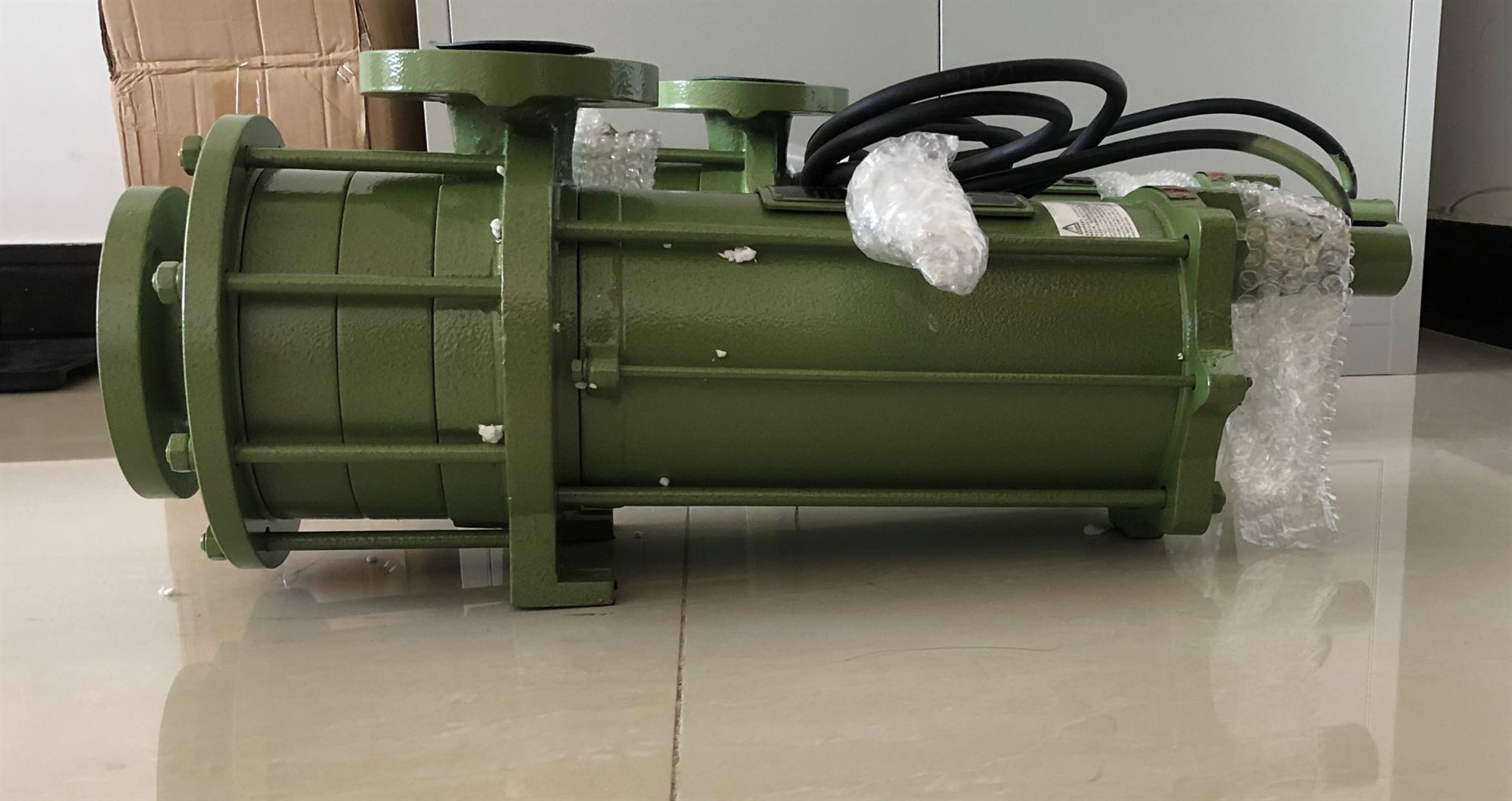

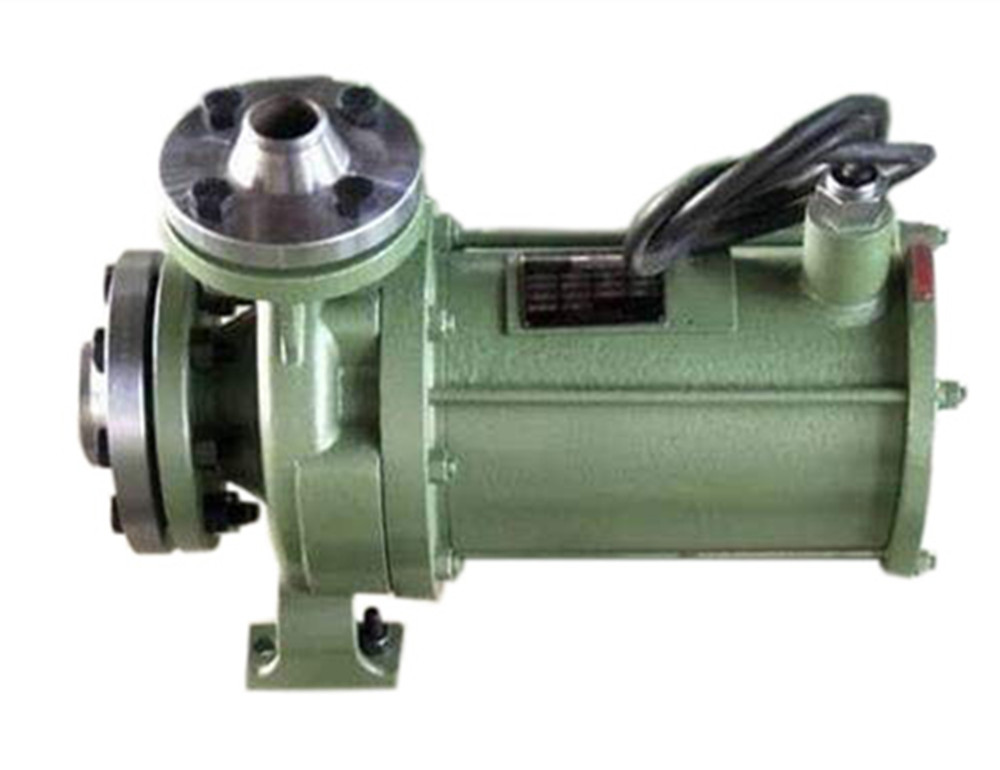

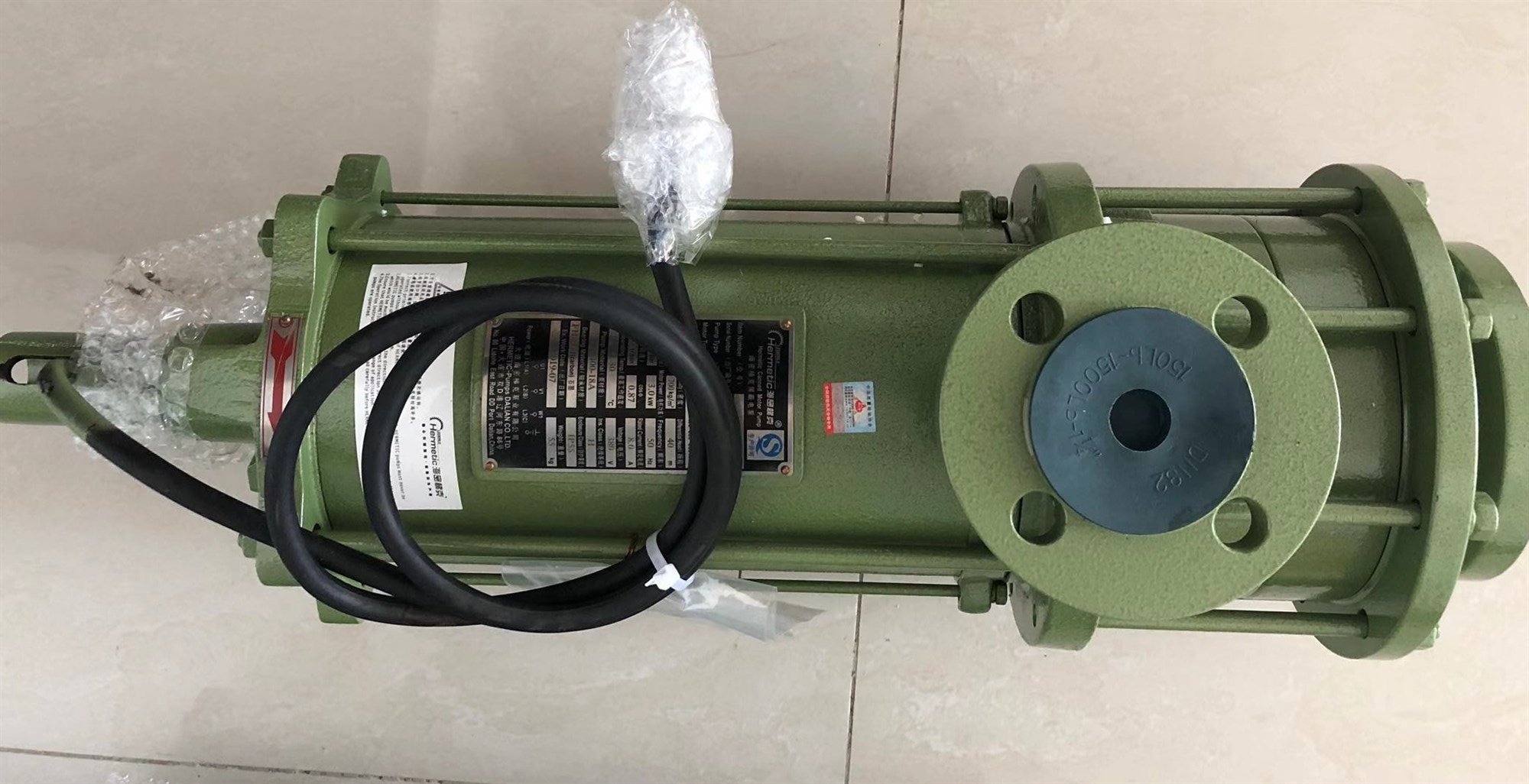

Hermetic refrigeration pump consists of CNF series and CAM2 series, in which CNF series is in a horizontal single-stage structure and CAM2 in a horizontal muli-stage structure, and both are in the form of axial suction, radial discharge.

Application

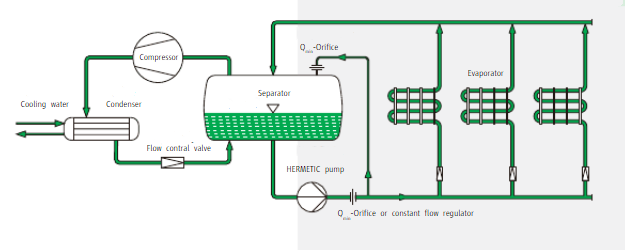

Hermetic refrigeration pump is widely used in the refrigeration industry for safe delivery of such refrigerants as liquid ammonia (R717)， Freon (R22/R12), silicon oil, etc.

*Low cost and high performance to price ratio  *Long service period and low product consumption  *Nearly zero maintenance and repair expense  *Low operation energy consumption and high efficiency  *Simple and compact structure makes low installation expense  *High safety perfomance  *Poweful after-sale service group

Technical Parameters

Operating range
Operating range Capacity Q 4-70m3/h*
Head H max.100m*
Temperature -50℃~+30℃*

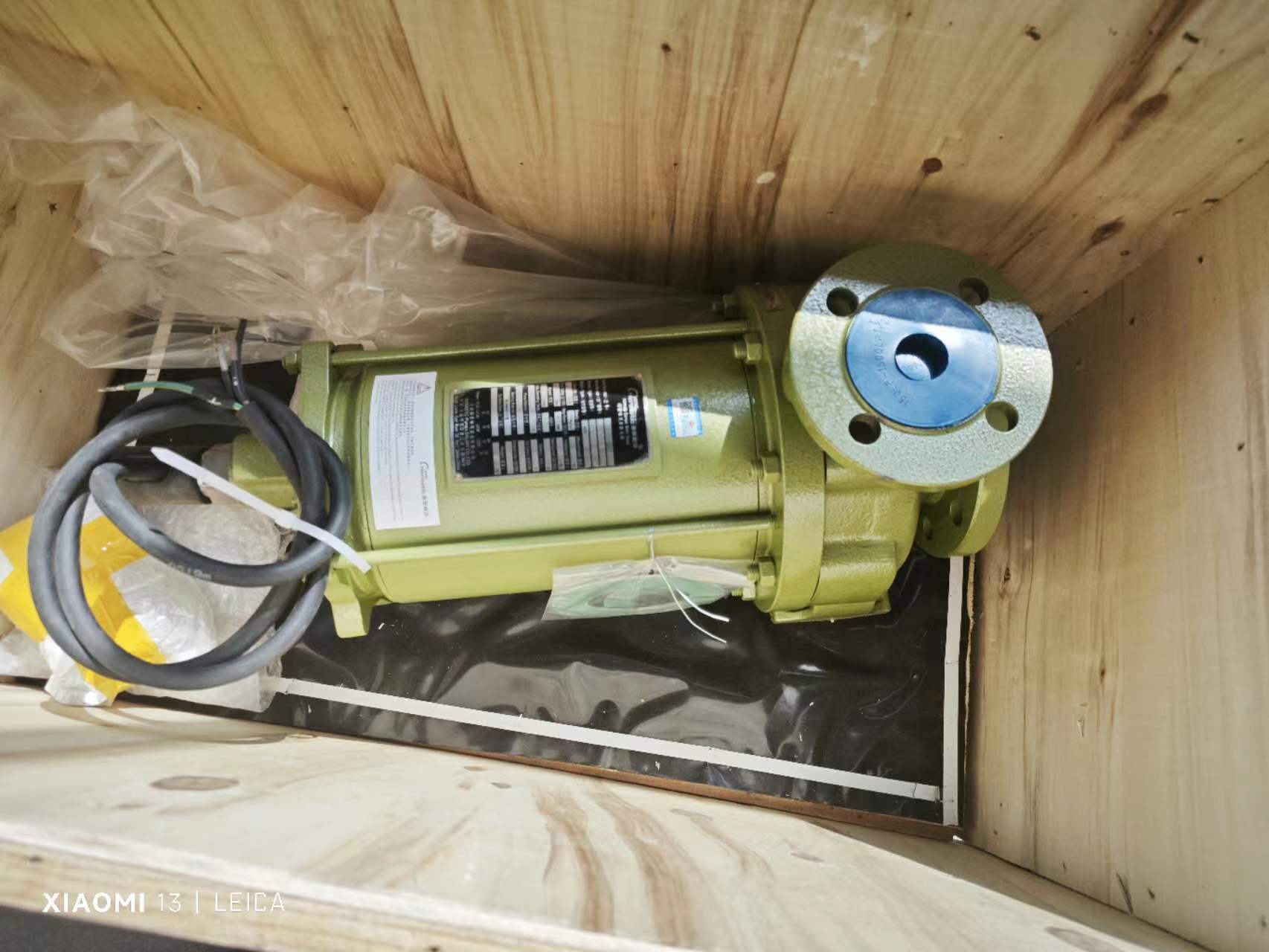

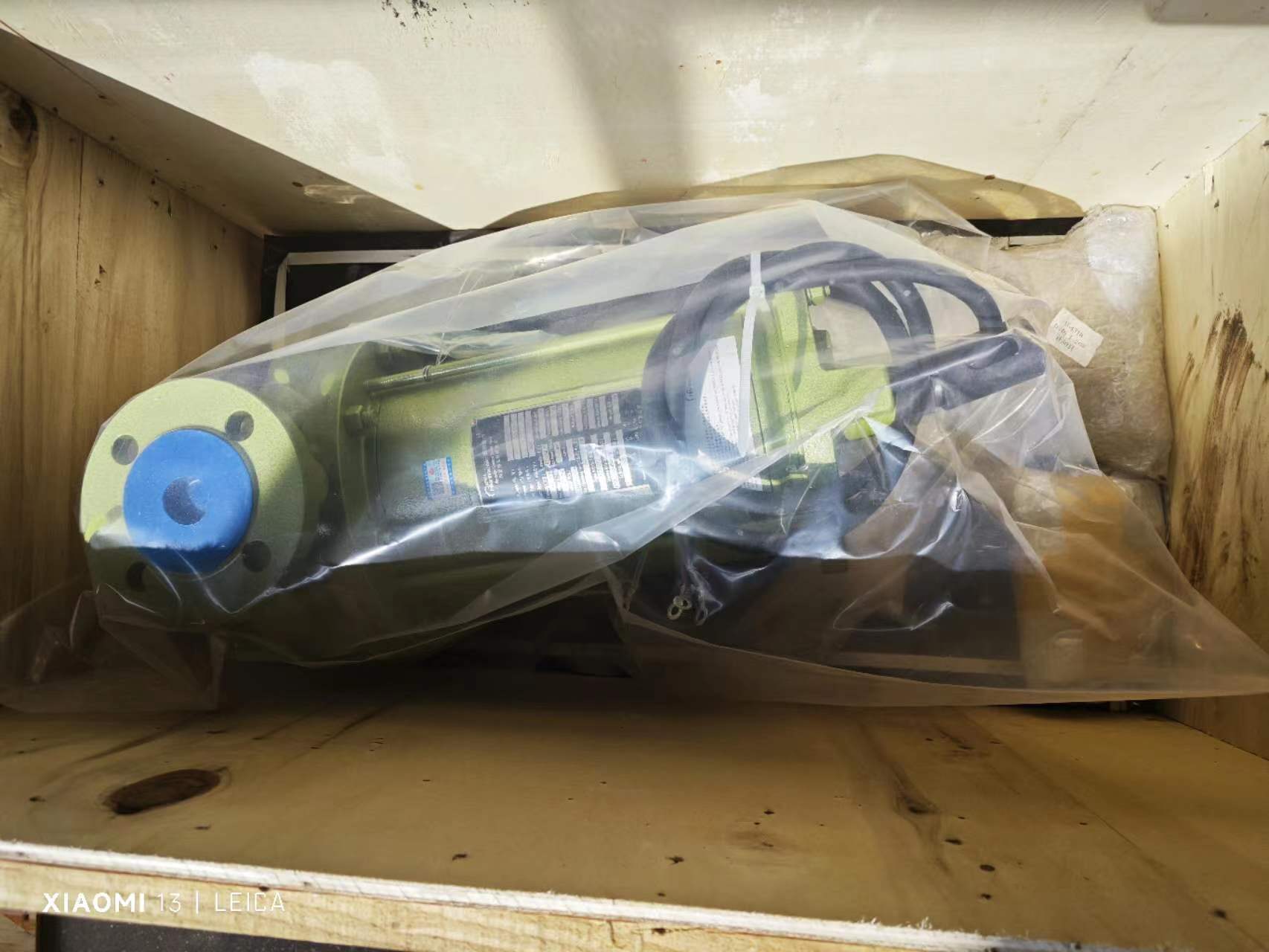

Packing&Shipping
